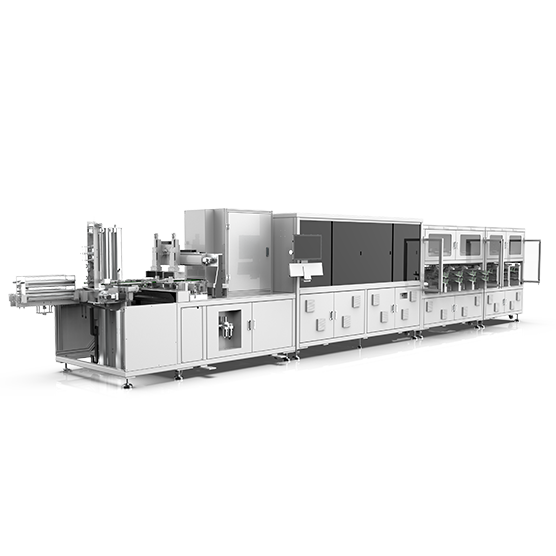

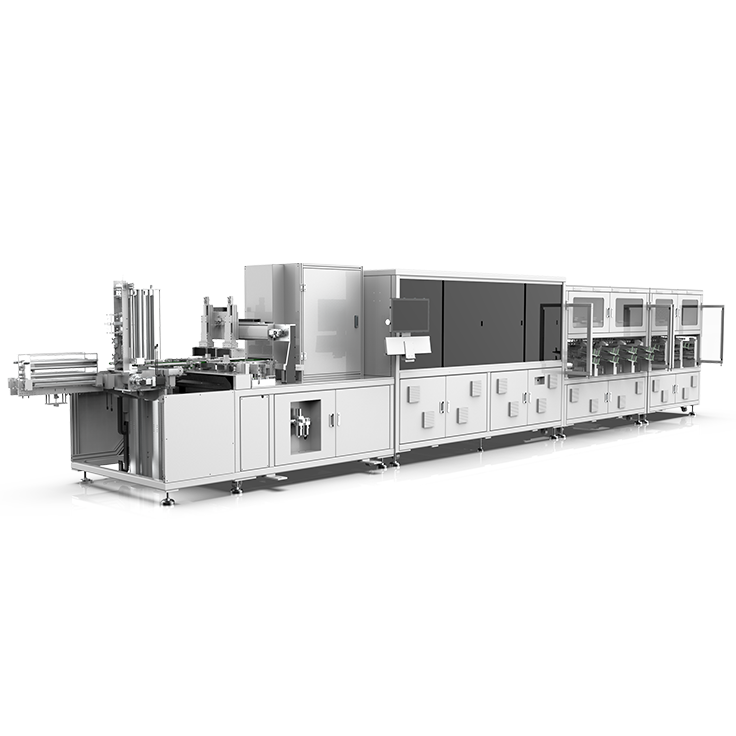

光伏硅片分選機
天準高速分選機凝聚天準10余年的機器視覺技術和經驗，能夠?qū)崿F(xiàn)硅片的厚度、TTV、電阻率、PN、線痕、隱裂、孔洞、臟污、崩邊、尺寸等高速檢測分揀設備，指標遠超同類設備； 設備兼容166-230硅片，182-230半片。
方案優勢
產品參數
-
-
單機產能
20K/h
-
適用硅片規格
166mm-230mm全片，兼容182mm-230mm半片
-
檢測精度
尺寸檢測精度≤30μ (3σ）；3D檢測厚度精度≤0.5μ (3σ）；電阻率檢測精度≤2% (3σ）；臟污//崩邊檢出率 ≥98% ，隱裂/孔洞/缺角檢測率100%
-
穩定性
碎片率 ＜0.05%；直流率 ＜0.15% ；誤判率＜0.3%；漏檢率＜0.2%；碎片、連片、厚片、疊片、隱裂片在上料站進行剔除，避免異常片造成檢測模塊的異常
-
兼容性
可擴展自動下料，方便垂直一體化建設
-
